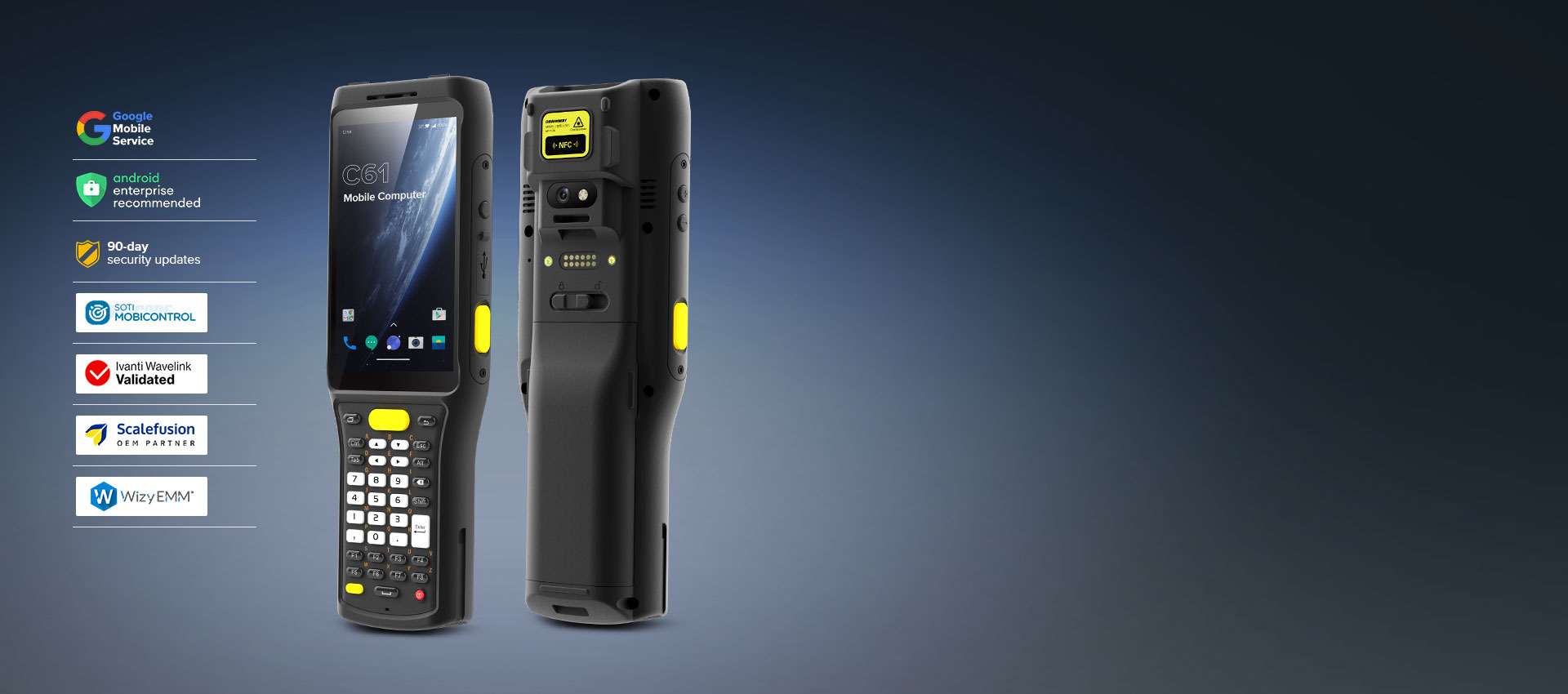

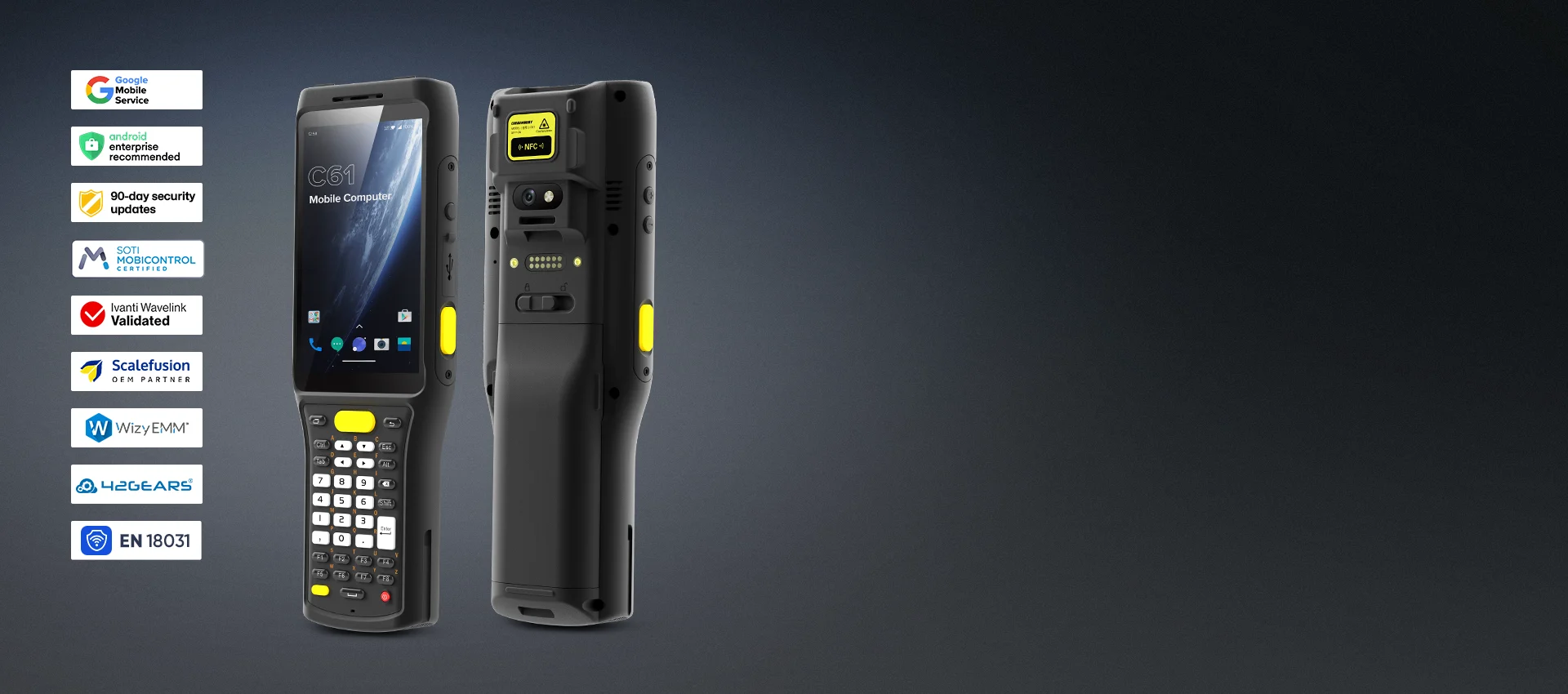

Take Efficiency to a New Level

Features
Android 9.0 / 11.0 Qualcomm 1.8 / 2.0 GHz Octa-core
Optional Trigger Handle (Extended 5200mAh Battery) 6700mAh Removable Battery
QC3.0 Quick Charge and RTC Optional 27keys / 37keys / 47keys
Functions
Barcode Scanning ( > 10m, Optional) NFC
Optional UHF RFID 13MP Autofocus Camera
Dual-band WIFI 4G

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery
Specification(USB IRIS Scanner)
Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System
Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces
Development Board
Module
Physical Characteristics
Dimensions 202.0 x 72.5 x 32.0 mm / 7.95 x 2.85 x 1.26 in.
Weight 370 g / 13.05 oz.(SE4710); 404 g / 14.25 oz. (SE4850);
( Device Weight for Argentina, Uruguay, Bolivia, Ecuador market: 342~404 g, including battery )
Display 4-inch high definition full display, IPS LTPS 800*480
Battery 6700 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC;Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security
Standby: up to 680 hours (only main battery ; WiFi: up to 560h; 4G: up to 560h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 3.5 hours (charge device by standard adaptor and USB cable)
Touch Panel Multi-touch panel, gloves and wet hands supported
Power
Speaker Support
Vibrator Support
Microphone 2 Microphones, 1 for noise reduction
Expansion Slot
Buzzer
Interfaces Android 9.0: USB Type-C, USB 3.0, OTG, extended thimble
Android 11.0: USB Type-C, USB 3.1, OTG, extended thimble
Card slot 1 slot for SIM card, 1 slot for TF card
Audio
Input Mode
Keypad Main keyboard (Optional): 27 keys / 37 keys / 47 keys;
Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key
Sensors Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor
Pupil Lamp
Indicator LED Power, charging, status indicator
Size of adapted phone
Product Material
Colour
Voltage and Current
Material
Input Voltage
Standby Current
AC Adapter
Sleep Current
Comm Interface
GPIO
Baud Rate
Cooling Mode
Work Current
Display Interface
Port
Charging Current
Charging Duration
Ethernet interface
Power Supply
Identification Lamp
RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode
Communication Interface
Connector
Host Communication
Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode(EN high TTL level)
Power Consumption in Power Down Mode(EN low TTL level)
Communication
Ethernet interface
WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations;
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, etc.
WWAN
WWAN (Europe, Asia) 2G: 850/900/1800/1900MHz
3G: CDMA EVDO: BC0
       WCDMA: 850/900/1900/2100MHz
       TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (Europe)
WWAN (America) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: Android 9.0: B2/B4/B5/B7/B12/B17/B38
      Android 11.0: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38
WWAN (Quad-core)
WWAN (Octa-core)
WWAN (China)
WWAN (Others)
Bluetooth Android 9.0: Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Android 11.0: Bluetooth 5.1
WWAN(Overseas)
Vo-LTE Support Vo-LTE HD video voice call
GPS
GNSS GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
GPS (Optional)
USB Type C
Note
Developing Environment
Operating System Android 9.0; GMS, 90-day security updates, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported
Android 11.0; GMS, built-in support for a future upgrade through Android 12 which complies with GMS and Android Enterprise Recommended
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Security
Performance
CPU(1)
CPU Qualcomm 1.8 / 2.0 GHz Octa-core
RAM+ROM(1)
Option 1
Option 2
CPU(2)
RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB
High-level Configuration
MCU
Low-level Configuration
RAM+ROM(2)
RAM+ROM
Expansion Supports up to 128 GB Micro SD card
Storage
UHF1 (UHF Back Clip)
Engine
Frequency
Protocol
Antenna
Power
R/W range
Fastest Read Rate
Communication Mode
Note
UHF2 (UHF Sled)
Engine
Frequency
Protocol
Antenna
Power
R/W range
Fastest Read Rate
Communication Mode
Note
UHF3 (Build-in UHF, coming soon)
Frequency
Protocol
Antenna
Power
R/W range
Note
Volume Measurement
Sensor
Range
Measurement Error
Module
Field of view Angle
Measurement speed
Measured distance
Note
Fingerprint
Sensor
Sensing Area (mm)
Resolution (dpi)
Certifications
Format Extraction
Fake Finger Detection
Security
Note
Communication Android 8.1
WLAN
WWAN (China)
WWAN (Europe)
WWAN(America)
WWAN (Others)
Bluetooth
GNSS
Communication(Quad-core)
WLAN
WWAN
WWAN (China)
WWAN (Europe)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Note
Communication(Octa-core)
WLAN
WWAN (China)
WWAN
WWAN(Europe)
WWAN(Overseas)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Communication Android 11.0
WLAN
WWAN
Bluetooth
GNSS
PSAM
Protocol
Slots
Note
UHF RFID
Engine CM2000-1 module based on Impinj Indy R2000;
CM710-1 module based on Impinj E710 (coming soon)
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular Polarized Antenna (4 dBi)
Power 1W (30 dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33 dBm, for Latin America, etc.)
R/W ranges Up to 15 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate (circular polarization)
Output Power
Output Power Precision
Output Power Flatness
Receive Sensitivity
RSSI
Ambient Temp Monitor
Fastest Read Rate 900+ tags/sec
Antenna Detector
Antenna Port
Communication Mode Pin Connector
Read Range
Note *Ranges and rates depend on tags and environment
Note2 *This function is optional
InfraRed
Wavelength
Frequency
Range
Protocol
Note
User Environment
Input Voltage
Operating Temp. -20 ℃ to +50 ℃
Storage Temp. -40 ℃ to +70 ℃
Humidity 5% RH to 95% RH (non condensing)
Luminance of environment
Drop Specification Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Ambient Light Immunity
Sealing IP67 per IEC sealing specifications
ESD ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Scanner
Scan engine(Quad-core)
Scan engine(Octa-core)
1D Linear Scanner
Scan engine
1D Linear Scanner(Quad-core)
2D Imager Scanner(Quad-core)
2D Imager Scanner(Octa-core)
2D Imager Scanner Zebra: SE4710/SE4750SR/SE4750MR/SE4750DP/SE4850; Honeywell: N6603/EX30
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional
Note2
LF RFID
Frequency
Protocol
Chips
Range
Note
Camera
Camera
Front Camera
Top Camera
External Camera (optional)
Rear Camera Rear 13 MP Autofocus with flash
Internal Camera (Optional)
Note
Note2
Thermal Printer
Rate
Image Size (pixel)
Paper Width
Paper Diameter
Paper Length
NFC
Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4 cm
Remark
Note
Note2
LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note
HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2
Iris Recognition
Rate
Range
FAR
Note
Note2
Temperature Collection
Measure Position
Measure Method
Measure Distance
Measure Range
Measure Accuracy
Measure Duration
Spectral Range
Resolution
Note
HID iCLASS SE
Frequency
Chips
Protocol
OBD
Protocol
Reading Performance
Reading Rate
Reading Range
Optional accessories
Accessories Separate handle with one button;
Handle + battery (handle battery 5200 mAh, one button) ;
UHF back clip + handle (5200 mAh, one button) ;
Wrist Strap; Charging Cradle
Note *See details in Accessory Guide
