C6000 Rugged Mobile Computer

C6000 Rugged Handheld Computer

Rugged and Portable with High Performance

Chainway C6000 is a rugged mobile computer. Configurated with optional barcode scanning, NFC and other functions, it features removable battery and powerful battery capacity. Its ruggedness and durability enables C6000 to meet the challenging requirements of logistics, warehouse management, etc and enhance working efficiency.

Get Quote

Rugged and Portable with High Performance

Features

Android 6.0 OS	4200mAh Removable Battery
IP65 Sealing	2m Drop Proof
Optional Trigger Handle	4G / Dual-band WIFI

Functions

Barcode Scanning (Optional)	NFC
8/13MP Camera	Secure PSAM
Accurate GPS

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery

Specification(USB IRIS Scanner)
Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System

Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces

Development Board
Module

Physical Characteristics
Dimensions	157.6 x 73.7 x 29mm / 6.2 x 2. 9 x 1.1 in.
Weight	292 g / 10.3 oz.
Display	4'' WVGA (480*800), 16.7M colors
Battery
Touch Panel	Rugged dual touch capacitive touch panel
Power	Main battery: Li-ion, rechargeable, 4200mAh Standby: over 300 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Speaker
Vibrator
Microphone
Expansion Slot	1 PSAM (only for high-level configuration,but is not available for V4 version): ISO7816 protocol , 1 SIM, 1 MicroSD (TF) slot
Buzzer
Interfaces	USB Micro-B, OTG
Card slot
Audio	0.5W speaker, build-in microphone
Input Mode
Keypad	3 TP soft keys, 3 side keys, numeric keyboard
Sensors	Light sensor, proximity sensor, gravity sensor, vibration motor
Pupil Lamp
Indicator LED
Size of adapted phone
Product Material
Colour
Voltage and Current
Material
Input Voltage
Standby Current
AC Adapter
Sleep Current
Comm Interface
GPIO
Baud Rate
Cooling Mode
Work Current
Display Interface
Port
Charging Current
Charging Duration
Ethernet interface
Power Supply
Identification Lamp

RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode

Communication Interface
Connector
Host Communication

Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode（EN high TTL level）
Power Consumption in Power Down Mode（EN low TTL level）

User Environment
Input Voltage
Operating Temp.	-4°F to 122°F / -20°C to 50°C
Storage Temp.	-40°F to 158°F / -40°C to 70°C
Humidity	5%RH - 95%RH non condensing
Luminance of environment

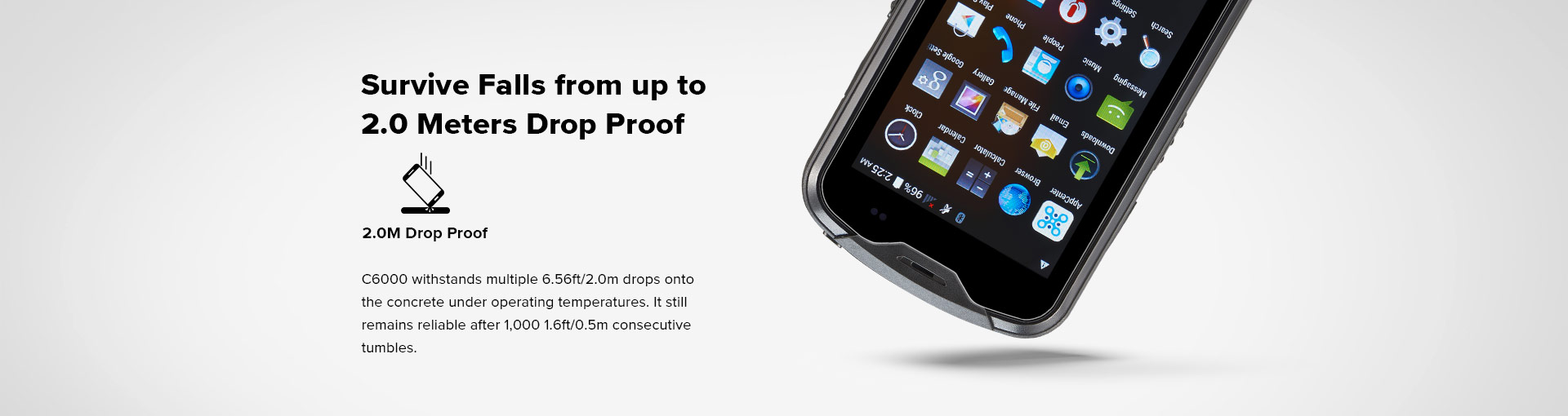

Drop Specification	Multiple 2.0m/6.56ft drops to concrete across the operating temperature range
Tumble Specification	1000 x 0.5m/1.64ft falls at room temperature
Ambient Light Immunity
Sealing	IP65 per IEC sealing specifications
ESD	±15KV air discharge, ±6KV conductive discharge

Developing Environment
Operating System	Android 6.0; Soti MobiControl, SafeUEM supported
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio
Security

Performance
CPU（1）
CPU	Cortex A-53 1.3 GHz Quad-core
RAM+ROM（1）
Option 1
Option 2
CPU（2）
RAM+ROM	2GB+16GB / 1GB+8GB
High-level Configuration
MCU
Low-level Configuration
RAM+ROM（2）
RAM+ROM
Expansion	Supports up to 128 GB Micro SD card
Storage

UHF1
Engine
Frequency
Protocol
Antenna
Power
R/W range
Fastest Read Rate
Communication Mode
Note

UHF2 (UHF Sled)
Engine
Frequency
Protocol
Antenna
Power
R/W range
Fastest Read Rate
Communication Mode
Note

Communication(Quad-core)
WLAN
WWAN (China)
WWAN (Europe)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Note

Communication(Octa-core)
WLAN
WWAN (China)
WWAN(Europe)
WWAN(Overseas)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS

Communication
Ethernet interface
WLAN	IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Optional)
WWAN
WWAN (Europe, Asia)
WWAN (Europe)	2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America)	2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHz 4G: B2, B4, B7, B12, B17
WWAN (Quad-core)
WWAN (Octa-core)
WWAN (China)	2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: TDD-LTE: B38, B39, B40, B41 FDD-LTE: B1, B3
WWAN (Others)	Depending on the country's ISP
WWAN (V4)	2G: 850/900/1800/1900MHz 3G WCDMA : B1, B2, B4, B5, B8 4G: TDD-LTE: B38, B39, B40, B41 FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B12, B17, B20
WWAN(Overseas)
Vo-LTE
Bluetooth	Bluetooth 4.0 BLE
GPS
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
GPS (Optional)
GNSS（Optional）
Type C USB
Note	C6000 models being manufactured for Brazil Market, do not include 4G B7 and B38 frequency. C6000 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Fingerprint
Functions
Memory
Sensor
Image Size (pixel)
Sensing Area (mm)
Resolution (dpi)
Standard
Formats
Certifications
Format Extraction
Security
Fake Finger Detection
Module
Sensor Type
Pixel Array
Note

PSAM
Protocol
Slots
Note

UHF RFID
Engine
Frequency
Protocol
Antenna
Power
R/W ranges
Fastest Read Rate (circular polarization)
Output Power
Output Power Precision
Output Power Flatness
Receive Sensitivity
RSSI
Ambient Temp Monitor
Fastest Read Rate
Antenna Detector
Antenna Port
Communication Mode
Read Range
Note
Note2

InfraRed
Wavelength
Frequency
Range
Protocol
Note

Barcode Scanning
2D Scanner
Scan engine(Quad-core)
Scan engine(Octa-core)
1D Linear Scanner	Zebra SE965 / Honeywell N4313 / UE966
Scan engine
1D Linear Scanner（Quad-core）
2D Imager Scanner(Quad-core)
2D Imager Scanner(Octa-core)
2D Imager Scanner	Zebra SE4710/ SE2100 / Honeywell N6603
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc
Note	*This function is optional
Note2

LF RFID
Frequency
Protocol
Chips
Range
Note

Camera
Camera	8/13MP Autofocus with flash
Front Camera
Top Camera
External Camera (optional)
Rear Camera
Internal Camera (Optional)
Note
Note2

Thermal Printer
Rate
Image Size (pixel)
Paper Width
Paper Diameter
Paper Length

NFC
Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Chips	M1 card (S50, S70), CPU card, NFC tags, etc
Range	2-4cm
Remark

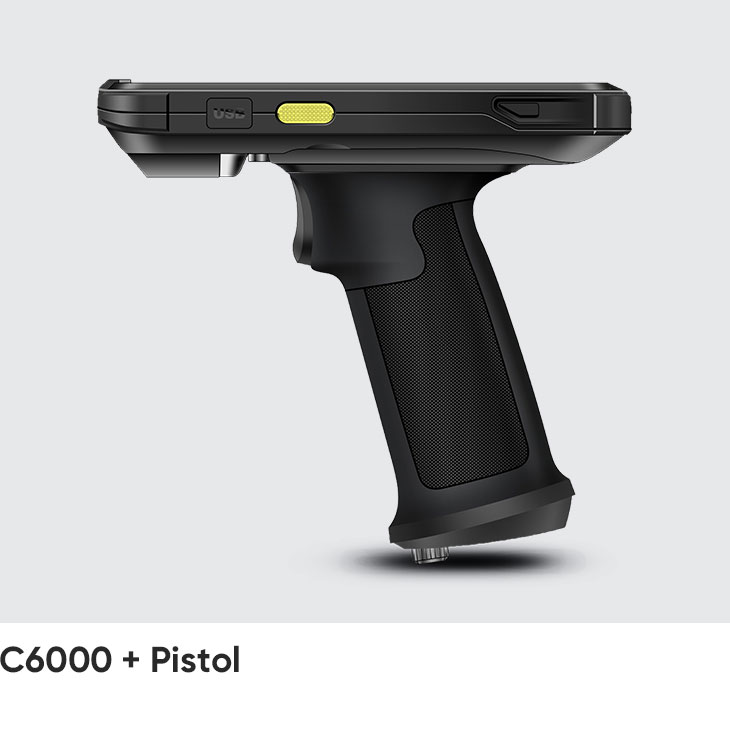

Note	* NFC is only available for high-level configuration, and pistol grip is only available for V4 version, NFC can not coexist with the pistol grip
Note2

LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note

HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2

Iris Recognition
Rate
Range
FAR
Note
Note2

Temperature Collection
Measure Position
Measure Method
Measure Distance
Measure Range
Measure Accuracy
Measure Duration
Spectral Range
Resolution
Note

HID iCLASS SE
Frequency
Chips
Protocol

OBD
Protocol

Reading Performance
Reading Rate
Reading Range

Optional accessories
Accessories
Note

DOWNLOADS

Documents & Manuals
C6000 Data Sheet 2019-09-09		PDF
C6000 User Manual 2018-11-20		PDF
C6000 Accessories Guide 2020-06-25		PDF

Softwares
APPcenter 2018-12-20		ZIP
KeyboardEmulator 2018-12-20		ZIP

Certificates
ISO9001 2018-11-14		PDF
ISO14001 2018-11-14		PDF
ISO18001 2018-11-14		PDF
C6000-CCC 2018-11-14		PDF
C6000-CE 2018-11-14		PDF
C6000-RoHS 2018-11-14		PDF
C6000-FCC 2018-11-14		PDF
C6000-IMEI TAC 2018-11-14		PDF
C6000-IP65 2018-11-14		PDF
C6000-2m Drop Test Report 2018-11-14		PDF
C6000-Report for Safe Transport 2018-11-14		PDF
