Performance Parameter | |
Optical system | |
Light Source | |
Image Sensor | |
Image (Pixels) | |
Field of View | |
Decoding Rate | |
Decoding Capabilities | |
Roll / Pitch / Yaw | |
Scanning speed | |
Print Contrast | |
Angle | |
Resolution | |
Depth of Field | |
Printing Contrast | |
Prompting Mode | |
Interface | |
Trigger Mode | |
Setting Mode | |
Frequency | |
Communication Distance | |
Transmission Rate | |
Current | |
Capability of Battery |
Specification(USB IRIS Scanner) | |
Working Current | |
Start Current | |
Standby Current | |
Working Current | |
Resolution Ratio | |
FoV | |
Identification Range | |
Registration Range | |
Registration Time | |
Identification Time | |
Infared Wavelength | |
FAR | |
FRR | |
Frame Rate | |
Operating Temp. | |
Storage Temp. | |
Power Supply & Data Interface | |
Operating System Requirements | |
SDK Fitting System |
Symbology Decode Capability | |
1-D | |
2-D | |
Decoding rate | |
Interfaces |
Development Board | |
Module |
Physical Characteristics | |

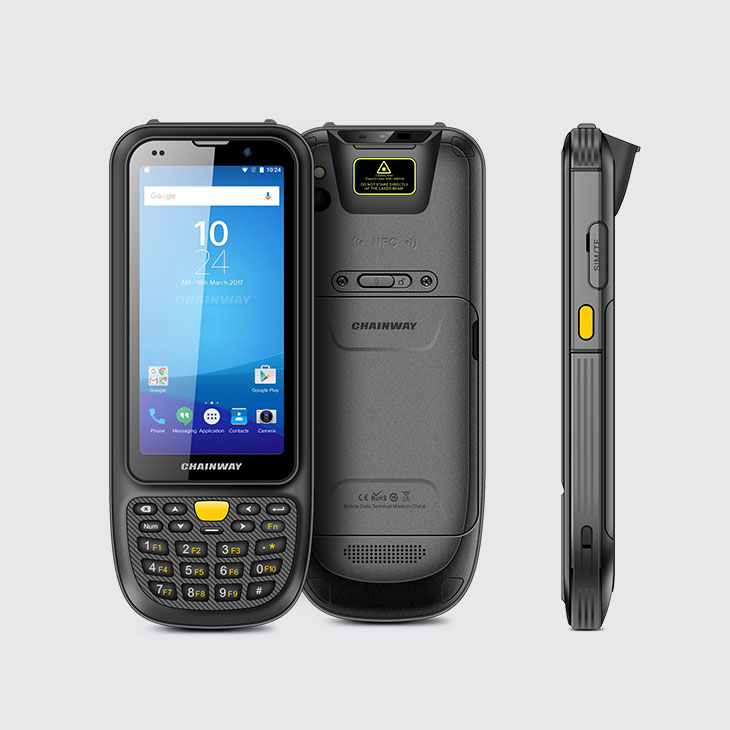

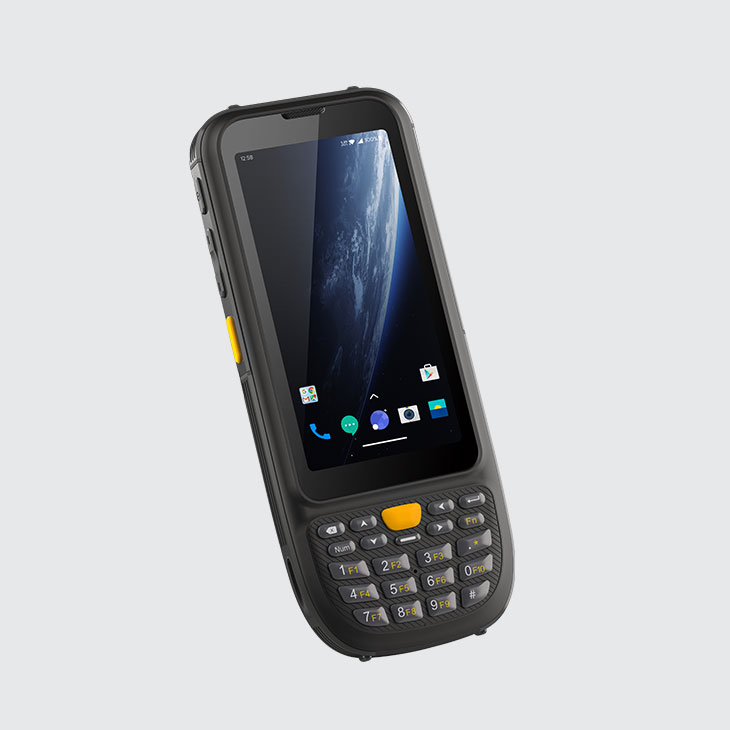

Dimensions | 159.5 x 65.7 x 16.8 mm / 6.28 x 2.58 x 0.66 in. |
Weight | 219 g / 7.72 oz. (device with battery) |
Display | 4-inch (18:9), IPS LTPS 1080 x 540 |

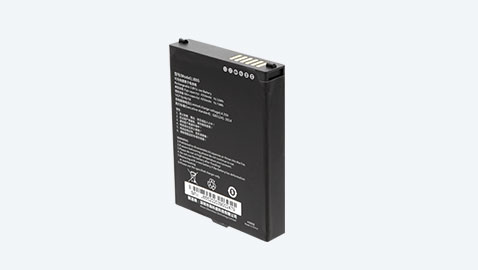

Battery | 4350 mAh removable main battery, 2600 mAh pistol battery (UHF version optional) Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) |
Touch Panel | Multi-touch panel, gloves and wet hands supported |
Power | |
Speaker | Support |
Vibrator | Support |
Microphone | 2 Microphones, 1 for noise reduction |
Expansion Slot | |
Buzzer | |

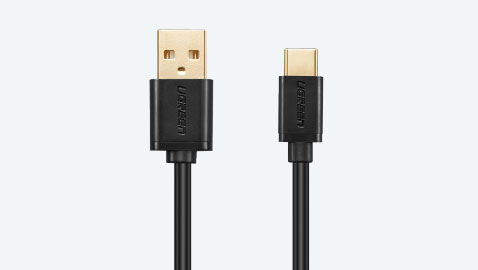

Interfaces | USB Type-C, USB 2.0, OTG |
Card slot | 1 slot for SIM card, 1 slot for SIM or TF card |
Audio | |
Input Mode | |
Keypad | 5 side keys : power, 2 scan keys, volume +/- Main keyboard: 22 keys (numeric keys, direction key, screen-lock key, Enter, Del, F1-F10, etc.) |
Sensors | Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor |
Pupil Lamp | |
Indicator LED | Power, charging, scanning indicator |
Size of adapted phone | |
Product Material | |
Colour | |
Voltage and Current | |
Material | |
Input Voltage | |
Standby Current | |
AC Adapter | |
Sleep Current | |
Comm Interface | |
GPIO | |
Baud Rate | |
Cooling Mode | |
Work Current | |
Display Interface | |
Port | |
Charging Current | |
Charging Duration | |
Ethernet interface | |
Power Supply | |
Identification Lamp |
RFID Features | |
RF Chip | |
Air Interface Protocol | |
Working Frequency | |
Output Power | |
Output Power Flatness | |
Antenna Interface | |
Regions Supported | |
Receive Sensitivity | |
Tag RSSI | |
Antenna Detector | |
Ambient Temp Monitor | |
Working Mode |
Communication Interface | |
Connector | |
Host Communication |
Power Supply | |
Input Voltage | |
Power Consumption in RF Output Mode | |
Power Consumption in Standby Mode(EN high TTL level) | |
Power Consumption in Power Down Mode(EN low TTL level) |
User Environment | |
Input Voltage | |
Operating Temp. | -20 ℃~+50 ℃ |
Storage Temp. | -40 ℃~+70 ℃ |
Humidity | 5% RH - 95% RH non condensing |
Luminance of environment | |
Drop Specification | Multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range |
Tumble Specification | 1000 x 0.5 m/1.64 ft falls at room temperature |
Ambient Light Immunity | |
Sealing | IP65 per IEC sealing specifications |
ESD | ±15 KV air discharge, ±8 KV conductive discharge |
Developing Environment | |
Operating System | Android 10; |
SDK | Chainway Software Development Kit |
Language | Java |
Tool | Eclipse / Android Studio |
Security |
Performance | |
CPU(1) | |
CPU | Qualcomm 1.8 GHz Octa-core / 1.3 GHz Quad-core |
RAM+ROM(1) | |
Option 1 | |
Option 2 | |
CPU(2) | |
RAM+ROM | 3 GB + 32 GB 2 GB + 16 GB (optional) |
High-level Configuration | |
MCU | |
Low-level Configuration | |
RAM+ROM(2) | |
RAM+ROM | |
Expansion | Supports up to 128 GB Micro SD card |
Storage |
UHF1 | |
Engine | |
Frequency | |
Protocol | |
Antenna | |
Power | |
R/W range | |
Fastest Read Rate | |
Communication Mode | |
Note |
UHF2 | |
Engine | |
Frequency | |
Protocol | |
Antenna | |
Power | |
R/W range | |
Fastest Read Rate | |
Communication Mode | |
Note |
Communication(Quad-core) | |
WLAN | |
WWAN | |
WWAN (China) | |
WWAN (Europe) | |
WWAN (America) | |
WWAN (Others) | |
Bluetooth | |
GNSS | |
Note |
Communication(Octa-core) | |
WLAN | |
WWAN (China) | |
WWAN | |
WWAN(Europe) | |
WWAN(Overseas) | |
WWAN (America) | |
WWAN (Others) | |
Bluetooth | |
GNSS |
Communication | |
Ethernet interface | |
WLAN | Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. |
WWAN (Optional) | |
WWAN | 2G: 850/900/1800/1900 MHz 3G: CDMA EVDO: BC0, BC1        WCDMA: B1/B2/B4/B5/B8        TD-SCDMA: A/F(B34/B39) 4G: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28/B38/B39/B40/B41 |
WWAN (Europe, Asia) | |
WWAN (Europe) | |
WWAN (America) | |
WWAN (Quad-core) | |
WWAN (Octa-core) | |
WWAN (China) | |
WWAN (Others) | |
WWAN (V4) | |
WWAN(Overseas) | |
Vo-LTE | Support Vo-LTE HD video voice call |
Bluetooth | Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR |
GPS | |
GNSS | GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna |
GPS (Optional) | |
GNSS(Optional) | |
USB Type C | |
Note |
Fingerprint | |
Functions | |
Memory | |
Sensor | |
Image Size (pixel) | |
Sensing Area (mm) | |
Resolution (dpi) | |
Standard | |
Formats | |
Certifications | |
Format Extraction | |
Security | |
Fake Finger Detection | |
Module | |
Sensor Type | |
Pixel Array | |
Note |
PSAM | |
Protocol | |
Slots | |
Note |
UHF RFID | |
Engine | CM2000-1 module based on Impinj Indy R2000 |
Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
Protocol | EPC C1 GEN2 / ISO18000-6C |
Antenna | Circular Polarized Antenna (4 dBi) |
Power | 1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.) |
R/W ranges | Up to 15 m (open outdoors, Impinj MR6 tag) |
Fastest Read Rate (circular polarization) | |
Output Power | |
Output Power Precision | |
Output Power Flatness | |
Receive Sensitivity | |
RSSI | |
Ambient Temp Monitor | |
Fastest Read Rate | 900+ tags/sec |
Antenna Detector | |
Antenna Port | |
Communication Mode | |
Read Range | |
Note | *Ranges and rates depend on tags and environment |
Note2 | *This function is optional |
InfraRed | |
Wavelength | |
Frequency | |
Range | |
Protocol | |
Note |
Barcode Scanning | |
2D Scanner | Zebra: SE4710; Honeywell: N6603; DS7000, IA166S, IA171S |
Scan engine(Quad-core) | |
Scan engine(Octa-core) | |
1D Linear Scanner | |
Scan engine | |
1D Linear Scanner(Quad-core) | |
2D Imager Scanner(Quad-core) | |
2D Imager Scanner(Octa-core) | |
2D Imager Scanner | |
1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc. |
Note | |
Note2 |
LF RFID | |
Frequency | |
Protocol | |
Chips | |
Range | |
Note |
Camera | |
Camera | |
Front Camera | 5MP |
Top Camera | |
External Camera (optional) | |
Rear Camera | Rear 13MP Autofocus with flash |
Internal Camera (Optional) | |
Note | |
Note2 |
Thermal Printer | |
Rate | |
Image Size (pixel) | |
Paper Width | |
Paper Diameter | |
Paper Length |
NFC | |
Frequency | 13.56 MHz |
Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
Range | 2-4 cm |
Remark | |
Note | |
Note2 |
LF RFID (with external antenna) | |
Frequency | |
Protocol | |
Chips | |
Range | |
Note |
HF RFID | |
HF | |
Frequency | |
Protocol | |
Chips | |
Range | |
Note | |
Note2 |
Iris Recognition | |
Rate | |
Range | |
FAR | |
Note | |
Note2 |
Temperature Collection | |
Measure Position | |
Measure Method | |
Measure Distance | |
Measure Range | |
Measure Accuracy | |
Measure Duration | |
Spectral Range | |
Resolution | |
Note |
HID iCLASS SE | |
Frequency | |
Chips | |
Protocol |
OBD | |
Protocol |
Reading Performance | |
Reading Rate | |
Reading Range |
Optional accessories | |

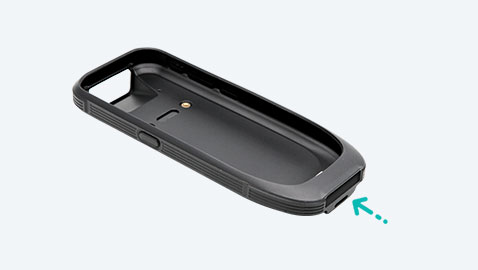

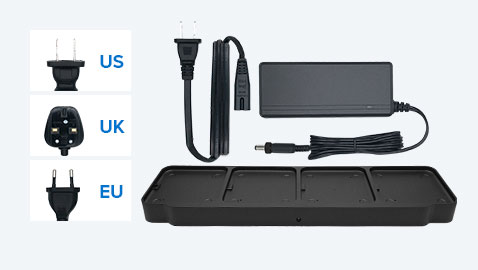

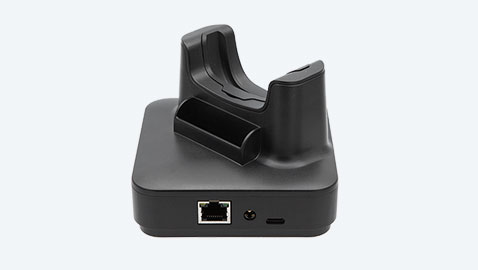

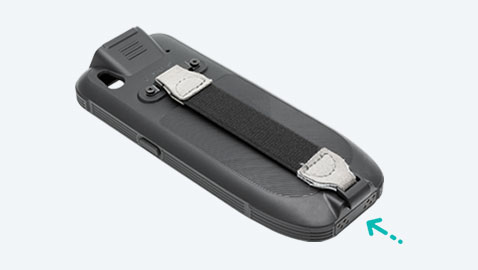

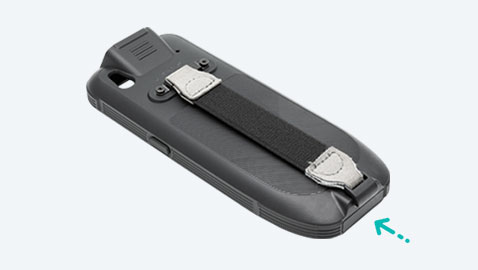

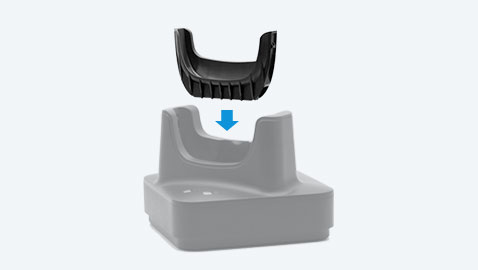

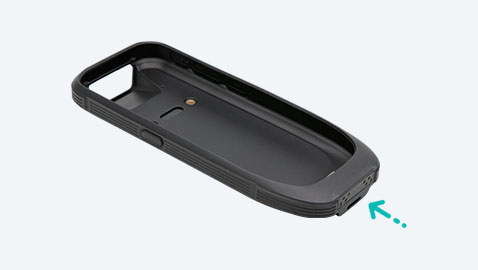

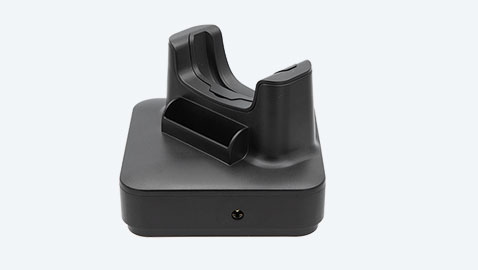

Accessories | Wrist Strap; Rubber Bumper; Charging Cradle |
Note | *See details in Accessory Guide |
