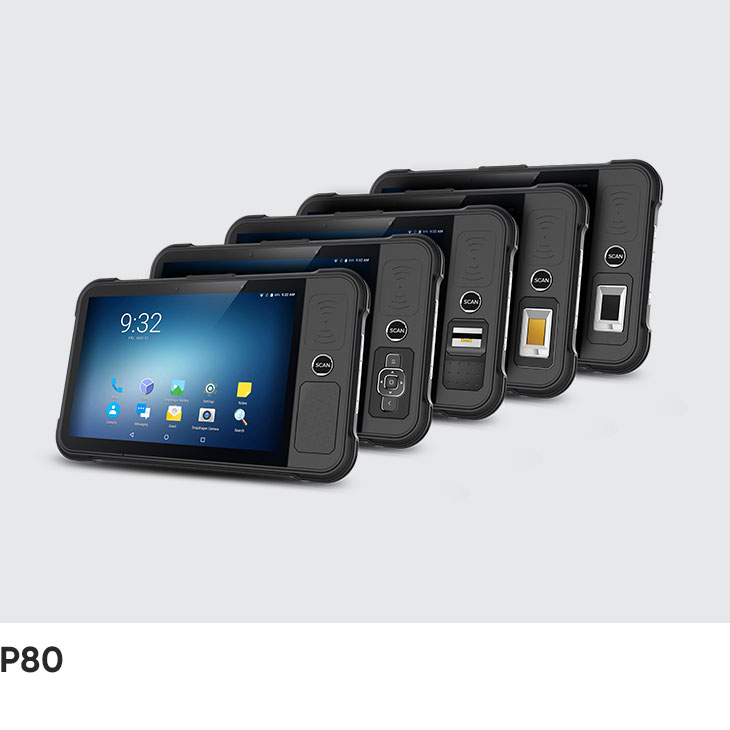

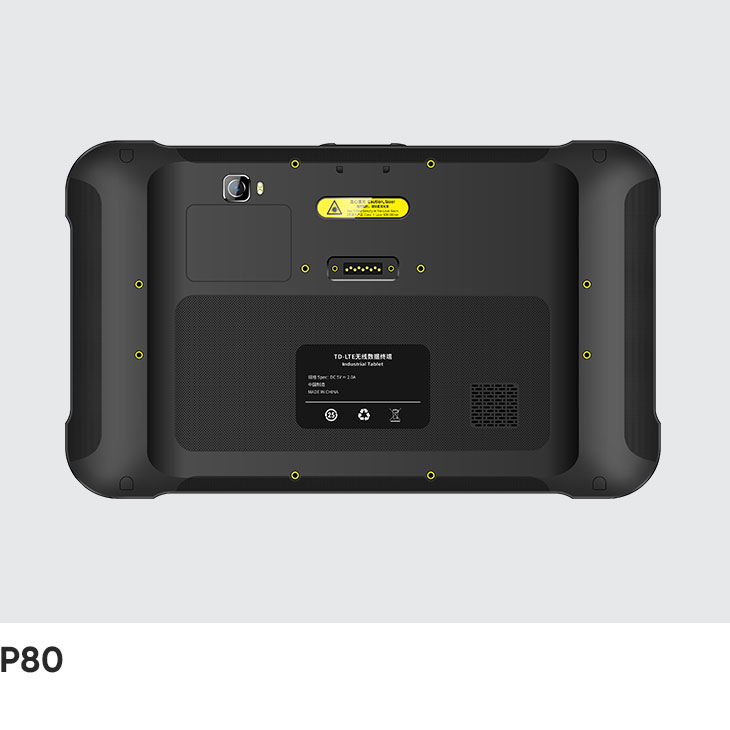

P80 Industrial Tablet (Android 9)

8'' Screen & 8000mAh Battery, Abundant Functions Available

Industrial Tablet (Android 9)
Industrial Tablet (Android 9)
Industrial Tablet (Android 9)
Industrial Tablet (Android 9)
Industrial Tablet (Android 9)
Industrial Tablet (Android 9)
Industrial Tablet (Android 9)
Industrial Tablet (Android 9)
Industrial Tablet (Android 9)
Industrial Tablet (Android 9)

Chainway P80 is an Android 9 rugged tablet with abundant functions. With Qualcomm Octa-Core CPU, 8-inch FHD screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, NFC, fingerprint recognition, etc. The rugged tablet can meet requirements in industrial fulfillments, such as retail, logistics, power, warehousing, transportation and so forth.

Features
Android 9 Android 9 8" IPS HD Display 8" IPS HD Display
High-Performance Octa-Core 1.8GHz High-Performance Octa-Core 1.8GHz 8000mAh Large Capacity Battery 8000mAh Large Capacity Battery
IP65 & 1.5m / 5ft. Drop IP65 & 1.5m / 5ft. Drop
Functions
Optional Barcode, UHF, NFC, Fingerprint, and More Optional Barcode, UHF, NFC, Fingerprint, and More Self-Developed Module Based on Impinj E710 Self-Developed Module Based on Impinj E710
Supports Impinj Gen2X for Enhanced UHF Performance Supports Impinj Gen2X for Enhanced UHF Performance

SPECIFICATIONS

Performance Parameter

Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery

Specification(USB IRIS Scanner)

Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System

Printing

Printing Method
Resolution
Max. Printing Speed
Max. Printing Width
Max. Printing Length

Media

RFID Tag
Types
Width
Thickness
Label Roll Diameter
Core Diameter
Label Length
Label Roll Capacity

Ribbon

Types
Width
Length
Core Diameter
Capacity

Symbology Decode Capability

1-D
2-D
Decoding rate
Interfaces

Development Board

Module

Physical Characteristics

Dimensions 250.8 mm x 152.0 mm x 15.0 mm / 9.87 x 5.98 x 0.59 in. ( for standard version )
Weight 700 g / 24.7 oz. ( for standard version )
Display 8'' IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800
Battery
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 8000 mAh
Standby: over 500 hours
Continuous use: over 10 hours ( depending on user environment )
Charging time: 5-7 hours ( with standard AC adaptor and USB cable )
Material
Speaker
Vibrator
Notification Sound, LED indicator
Microphone
Buzzer
Expansion Slot 1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots
Interfaces USB 2.0 Type-C, OTG
Card slot
Cable
Audio 1 microphone；1 speaker；receiver
Input Mode
Keypad 1 front key, 1 volume key, 1 power key, direction key (optional)
Sensors Accelerometer sensor, geomagnetic sensor, gyroscope
Button
Pupil Lamp
Indicator LED
Size of adapted phone
Product Material
Colour
Voltage and Current
Input Voltage
Standby Current
AC Adapter
Sleep Current
Comm Interface
GPIO
Baud Rate
Cooling Mode
Work Current
Display Interface
Port
Charging Current
Charging Duration
Ethernet interface
Power Supply
Identification Lamp
Ethernet Interface

RFID Features

RF Chip
Impinj Gen2X
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode

Communication Interface

Connector
Host Communication

Power Supply

Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode（EN high TTL level）
Power Consumption in Power Down Mode（EN low TTL level）

Communication

Ethernet interface
WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;
Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
WWAN
WWAN (Europe, Asia) 2G: 850/900/1800/1900MHz, GPRS, EDGE
3G: CDMA EVDO: BC0
       TD-SCDMA: B34/B39
       WCDMA: B1/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
       FDD-LTE: B1/B3/B5/B7/B8/B20
WWAN (Europe)
WWAN (America) 3G: WCDMA: B2/B4/B5
4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B
WWAN (Quad-core)
WWAN (Octa-core)
WWAN (China)
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
WWAN(Overseas)
Vo-LTE Support Vo-LTE HD video voice call
GPS
GNSS GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
GPS (Optional)
USB Type C
Note *P80 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Power

Input Voltage
UHF
HF
Standby

Developing Environment

Operating System Android 9; GMS, 90-day security updates, Android Enterprise, Zero-Touch,FOTA, Soti MobiControl, SafeUEM supported
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Security

Performance

CPU（1）
CPU Octa-core 1.8GHz ; GMS&AER
RAM+ROM（1）
Option 1
Option 2
CPU（2）
RAM+ROM 3GB + 32GB
4GB + 64GB (optional)
High-level Configuration
MCU
Low-level Configuration
RAM+ROM（2）
RAM+ROM
Storage
RAM
Flash
Expansion Supports up to 256GB Micro SD (TF) card

User Environment

Input Voltage
Operating Temp. -4 °F to 122 °F / -20 °C to 50 °C
Storage Temp. -40 °F to 158 °F / -40 °C to 70 °C
Humidity 5% RH - 95% RH non condensing
Luminance of environment
Drop Specification Multiple 1.5 m / 4.9 ft. drops ( at least 20 times ) to the concrete across the operating temperature range
Tumble Specification 500 x 0.5 m / 1.64 ft. falls at room temperature
Ambient Light Immunity
Sealing IP65 per IEC sealing specifications
ESD ±15 KV air discharge, ±8 KV conductive discharge
Note

Communication(Quad-core)

WLAN
WWAN
WWAN (China)
WWAN (Europe)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Note

Communication Android 8.1

WLAN
WWAN (China)
WWAN (Europe)
WWAN(America)
WWAN (Others)
Bluetooth
GNSS

Communication Android 11.0

WLAN
WWAN
Bluetooth
GNSS

Communication(Octa-core)

WLAN
WWAN (China)
WWAN
WWAN(Europe)
WWAN(Overseas)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS

Barcode Scanning

2D Scanner
Scan engine(Quad-core)
Scan engine(Octa-core)
1D Linear Scanner
Scan engine
1D Linear Scanner（Quad-core）
2D Imager Scanner(Quad-core)
2D Imager Scanner(Octa-core)
2D Imager Scanner Zebra SE4710
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Min.Resolution
Note * This function is optional
Note2

UHF RFID

Engine
Frequency
Impinj Gen2X
Protocol
Antenna
Power
Fastest Read Rate (circular polarization)
Output Power
Output Power Precision
Output Power Flatness
Receive Sensitivity
RSSI
Ambient Temp Monitor
Fastest Read Rate
Antenna Detector
Antenna Port
Communication Mode
Read Range
Max Read Range
Note
Note2

UHF1

Engine CM710-1 module based on Impinj E710
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Protocol EPC C1 GEN2 / ISO18000-6C
Supports Impinj Gen2X
Antenna Circular polarization (3 dBi)
Power 1W ( 30dBm, +5dBm to +30dBm adjustable )
2W Optional ( 33dBm, for Latin America, etc. )
Max Read Range Up to 10 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate 900+ tags/sec
Communication Mode
Note * Optional
* Ranges and rates depend on tags and environment

UHF2

Engine CM310-1 module based on Impinj E310
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Protocol EPC C1 GEN2 / ISO18000-6C
Supports Impinj Gen2X
Antenna 0 dBi
Power 1W ( 30dBm, +5dBm to +30dBm adjustable )
Max Read Range 30 cm
Fastest Read Rate
Communication Mode
Note *Built-in UHF, optional
* Ranges and rates depend on tags and environment.

UHF3

Engine
Frequency
Protocol
Antenna
Impinj Gen2X
Power
Max Read Range
Note

InfraRed

Wavelength
Frequency
Range
Protocol
Note

Volume Measurement

Sensor
Range
Measurement Error
Module
Field of View Angle
Measurement Speed
Measured Distance
Note

Fingerprint Recognition

Sensor
Fingerprint
Sensing Area (mm)
Resolution (dpi)
Certifications
Format Extraction
Fake Finger Detection
Security
Note

Fingerprint 1

Sensor TCS1 Capacitive
Sensing Area (mm) 12.8 × 18.0
Resolution (dpi) 508 dpi, 8-bit greylevel
Certifications FIPS 201, STQC
Format Extraction ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel
Note * This function is optional

Fingerprint 2

Sensor TLK1NC02
Sensing Area (mm) 14.0 X 22.0
Resolution (dpi) 508dpi, 256-bit greylevel
Certifications FIPS 201, FBI
Format Extraction ISO19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel
Note * This function is optional

Fingerprint 3

Sensor Optical Morpho CBM-E3
Sensing Area (mm) 14 x 22
Resolution (dpi) 500 dpi, 256 greylevel
Certifications FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction ISO 19794-2/4, WSQ, ANSI 378, etc.
Fake Finger Detection Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Pape
Security FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Note * This function is optional

Antenna 1

Frequency
Polarization Mode
Gain
Horizontal Angle
Vertical Angle
VSWR
FBR
Characteristic Impedance
Maximum Input Power
Lightning Protection
Antenna Port

LF RFID

Frequency
Protocol
Chips
Range
Note

Antenna 2

Polarization Mode
Frequency
Gain
Horizontal Angle
Vertical Angle
VSWR
FBR
Characteristic Impedance
Maximum Input Power
Lightning Protection
Antenna Port

Camera

Camera
Front Camera 8 MP
Top Camera
External Camera (optional)
Rear Camera 13MP autofocus rear camera with flash
Internal Camera (Optional)
Note
Note2

Thermal Printer

Rate
Image Size (pixel)
Paper Width
Paper Diameter
Paper Length

NFC

Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card ( S50, S70 ), CPU card, NFC tags, etc.
Range 2-4 cm
Remark
Note
Note2

LF RFID (with external antenna)

Frequency
Protocol
Chips
Range
Note

PSAM

Protocol ISO7816
Slots 2 PSAM card slots
Note * This function is optional

HF RFID

HF
Frequency
Protocol
Chips
Range
Note
Note2

Iris Recognition

Rate
Range
FAR
Note
Note2

Temperature Collection

Measure Position
Measure Method
Measure Distance
Measure Range
Measure Accuracy
Measure Duration
Spectral Range
Resolution
Note

HID iCLASS SE

Frequency
Chips
Protocol

OBD

Protocol

Reading Performance

Reading Rate
Reading Range

Optional Accessories

Accessories
Note

Certifications

Certifications

Other Specification (RFID Printer)

Emulation
Software
Resident Fonts
Download Fonts
Barcodes
Code Page
Graphics
Options & Accessory
Agency Approval

Other Specification (Printer)

Processor
Driver
Print Head Life
Internal Fonts
Barcodes
Rotation
Emulation
Factory Options
Dealer Options
Agency Approval

Specification (RFIDLinked)

Data Collection Suite
Printing/Encoding Suite
Data Management
Note

SUPPORT & DOWNLOADS

Documents & Manuals

P80 Data Sheet2024-12-03
P80 Accessories Guide2023-04-28
P80 User Manual2023-04-28

Videos

Company Introduction2024-09-06
Factory Introduction2022-05-17
